KOBELCO Introduces The SK1300DLC-11

Jun 24, 2026 - 8 hours ago

Introducing the new KOBELCO SK1300DLC-11 excavator, with a powerful 512 hp Isuzu Tier 4F engine, a wide range of boom and arm combinations and is purpose built for building demolition.

With variable front configurations this machine has a maximum reach of 130 feet. The machine’s mass operating weight is 302,000 lbs. but can be disassembled for easy transport. The minimum transport weight of the base machine without the counterweight is 134,000 lbs. with no single component weight exceeding 39,800 lbs. making it easy to move the machine.

KOBELCO Introduces The SK1300DLC-11

Built for Demolition

The machine comes with a separate demo digging front, 3-piece high reach, and 4piece high reach multi-configuration front attachment. The high reach attachment comes with transport and storage stands, water spray system, electronic on-board lubrication system, quick hitch piping, boom and arm safety valves, 2-piece removable layered counterweight, removable track system with remote trans-lifter, energy saving ECO -Mode, in cab hydraulic pressure release, combination rotation and nibbler breaker with proportional hand controls, case drain line and filter, reversable fan, and has unlimited power boost mode (for Separate Boom Attachment).

Built for Comfort

The -11 series feature a cabin environment that has enhanced ergonomics and safety features with best-in-class cabin space and visibility. The operator’s pilot levers move horizontally without arching of the wrist, while also providing shorter lever strokes to deliver a swifter, more precise movement. Built for demolition, the sound suppressed 30o tilting cabin comes with an emergency lowering system. Includes a 270o camera system with switchable rear-under view camera or high reach attachment view, rear view mirrors, LED work lights, rear swing flashers, demolition Level II FOPS guard and bar type front guard, P5A safety glass, falling object deflector, cab interference prevention system, stability tip-over warning and public address speaker system for on the ground handsfree communication.

→ Shop KOBELCO Machinery

Multiple air conditioning and heater vents are directed towards the operator to maximize comfort. On the right-side console there is a jog dial that integrates multiple functions into a single user interface with the large 10-inch color monitor. This easy-to-operate menu screen facilitates reading of valuable information including work mode, maintenance intervals, and fuel consumption. To top it off, the cabin is equipped with an FM/AM, AUX, Bluetooth, hands-free telephone radio, smartphone holder, USB charger, and a 12V power outlet.

Added Value

KOBELCO has decades of experience in building demolition and therefore includes more standard features. Kobelco built the machine with an unmatched ability to use larger tools at greater heights. The KOBELCO commitment to value and quality includes a standard limited full machine warranty of 3-years or 3000-hour and a 5-year or 3000-hour engine emission warranty. This warranty is provided through KOBELCO and our dealer network.

Engine Spec

This 512 hp. Isuzu 6WG1 engine meets current U.S EPA Tier 4F and E.U Stage V emission requirements. The engine features a 15.7-liter, in-line 6-cylinder, known for its power and reliability in demanding applications. The engine is commonly used in various heavy-duty trucks, construction, and other industrial equipment. KOBELCO also currently uses this model engine in our SK850LC-11 excavator. Engine parts and service are provided directly through KOBELCO and our dealer network.

→ Shop Excavators

Attachment Configuration

2-piece removable counterweight, removable track system with 4-point trans-lifter for upper carriage
Long Insert boom (N2-A), Main front boom (N3/N4), Front Boom (N5/N6/N7)
Standard front arm (N8-A pinned SK500), Semi-long front Arm (N8-B pinned SK350) Machine capable of operating as 3pc/4pc high reach in multiple configurations or with “separate” demo digging boom

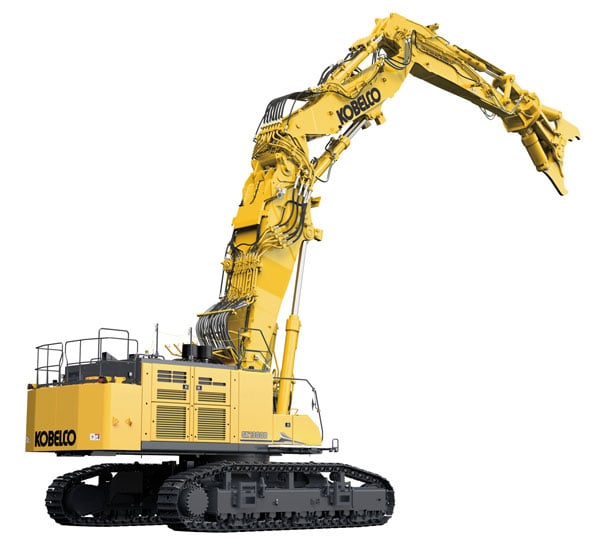

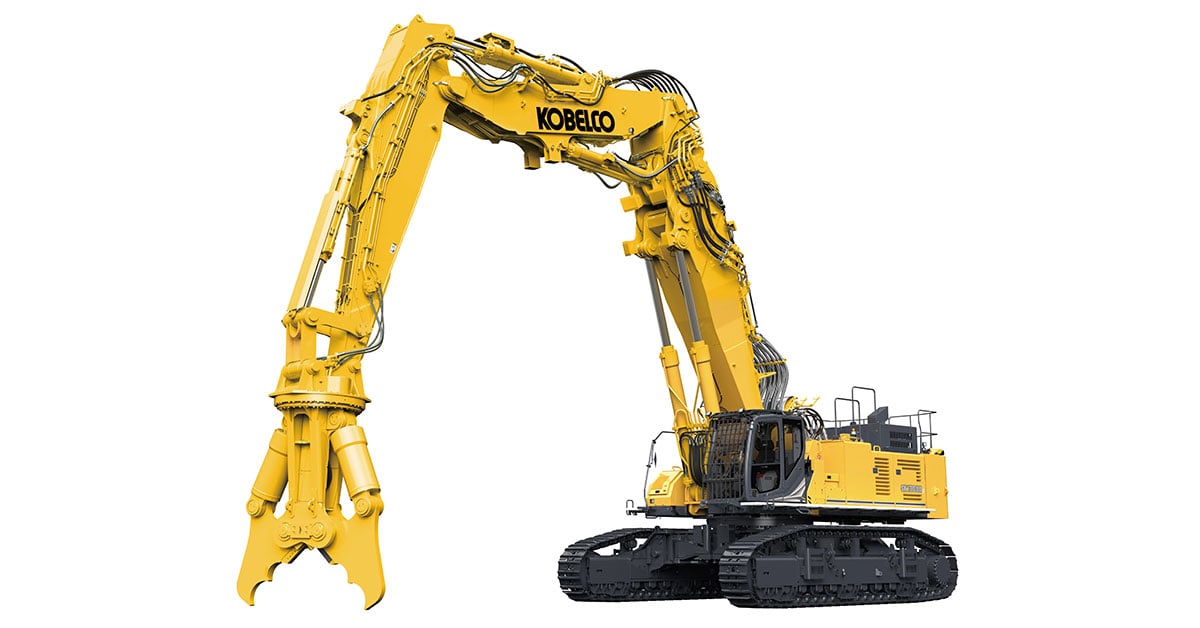

Separate demo/digging boom assembly - With insert boom (N2-B) a max. height of 78 ft. with 21,164 lb. tool and working depth of 26 ft. Pinned for SK850 linkage.

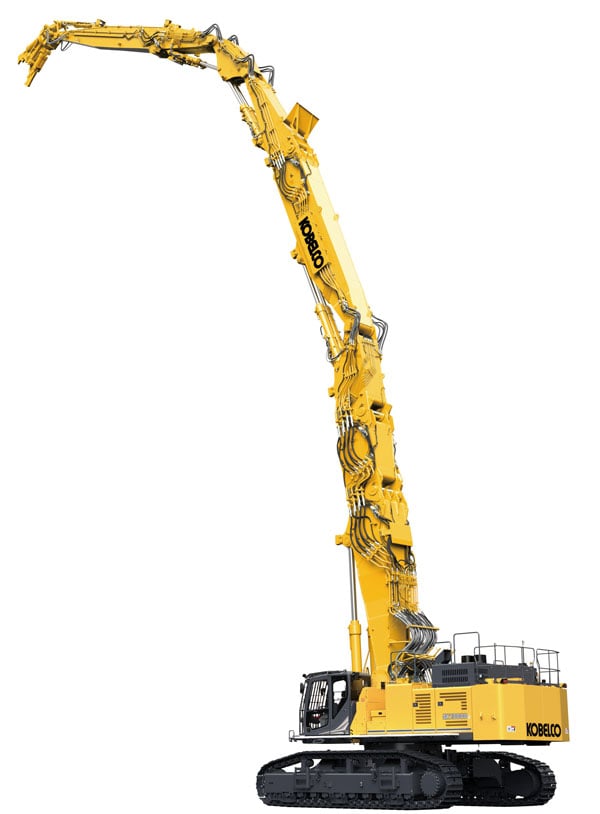

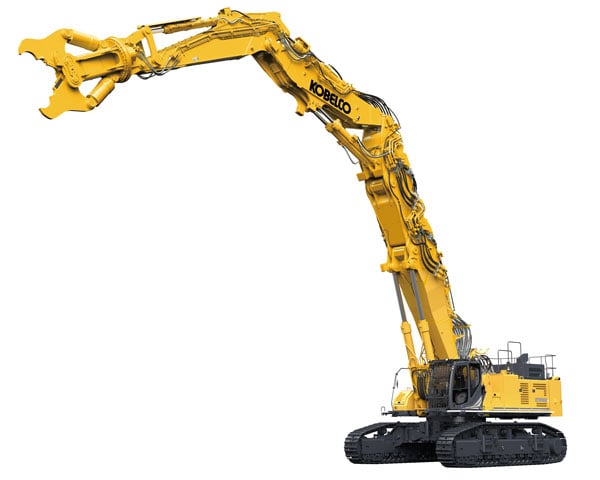

3-piece and 4-piece UHR front Max. heights of 101 ft. with a 13,448 lb. tool, 115 ft. with 11,464 lb. tool and 130 ft. with 9,480 lb. tool with ultra-long insert. Pinned for SK500 when using standard front arm (N8-A) and SK350 when using semi-long arm (N8-B). Includes: Separate digging front items above plus Removable boom base with cylinders (N1), short boom insert (N2-B), long boom insert (N2-A), front and rear main boom (N3, N4), boom and arm (N5, N6, N7), and std. arm (N8-A), semi-long arm (N8-B).

*Tool size dependent upon its weight and the position of its center of gravity for proper operability Tool not included.

Source: KOBELCO Construction Machinery
