K100 Heavy Duty Swivels

Apr 15, 2019 - 7 months ago

By Supply Post

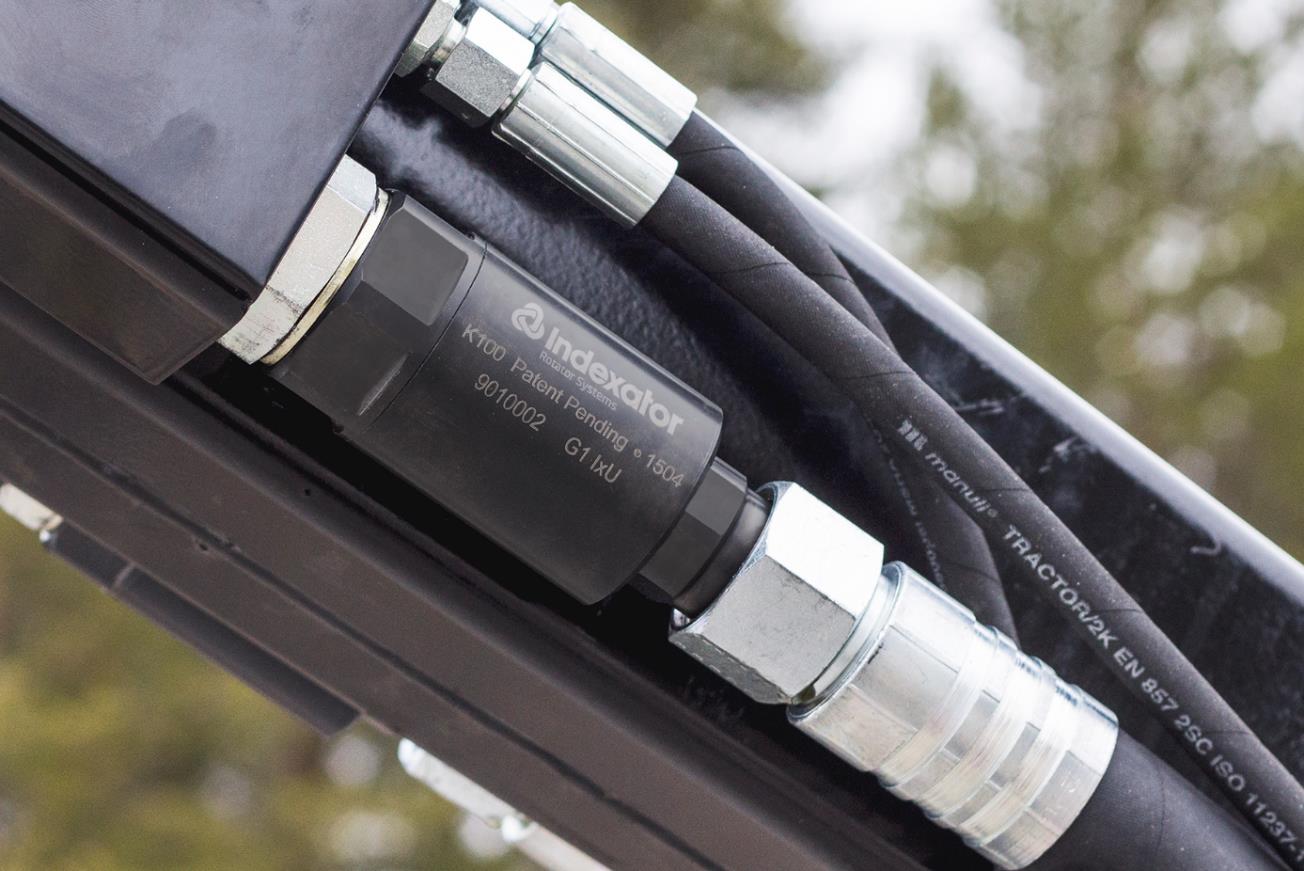

Indexator’s new generation of hose swivels – the K100. With its ball-free design the swivel withstands heavy side loads and peak pressure while eliminating the problem with twisting hoses.

Hydraulic hoses are sensitive for twisting and only a few degrees of twist can reduce hose life by up to 90 %. The elimination of twists increases hydraulic hose life time substantially.

The ball-less design makes the K100-swivel suitable for applications with heavy side loads, high pulling forces, and high pressure and flow. Especially for extreme applications such as forestry harvester and processors heads, and felling attachments.

The modular construction also provides major customization opportunities with many different connection and seal principles. Due to few components the maintenance of the swivels is easy.

The compact design with a small external diameter is also well suited where installation space is limited.
Main advantages of K100 Hose Swivels:

Resistant to heavy side loads
Secure solution - it cannot be forced apart during work
Withstands high pressure levels
Surface treatment that is highly corrosion and wear resistant
Dirt and water-resistant seal that protects from outside particles
Easy maintenance
Hardened bearing surfaces
Compact dimensions
Optimized design with few parts

For further information, contact Hultdins Inc. 519-754-0044
