Tigercat Releases New Forestry Equipment

Aug 24, 2022 - 3 years ago

New Tigercat 635H Swing Boom Skidder
The capabilities of the six-wheel drive 635H in steep terrain and cable assist applications have been taken to the next level with the integration of a Tigercat designed and built swing boom system initially introduced on the 635G series skidder.

Tigercat Releases New Forestry Equipment — *Tigercat 635H Swing Boom Skidder*

The additional working envelope and ability to position the grapple well outside of the working track of the machine increases productivity in applications where skidder travel is restricted or limited by terrain characteristics.

With the ability to lock the seat and operate the machine from any position with full drive controls, the Tigercat Turnaround® 220° seat is an important advantage for swing boom skidding applications. It allows the operator to position the seat at any rearward-facing angle to align the field of view to the working area of the grapple.

The slew system at the base of the boom is field-proven, using components that are common to Tigercat track machines. In addition to the increased working envelope, the boom has a more powerful lifting capacity compared with a conventional dual function arch.

For cable assisted applications, the skidder can be factory-equipped for tethering with optimally positioned frame lugs and through-the-blade cable routing. The lugs attach to the frame structure behind the front axle, closer to the payload.

Tigercat’s LX830 Feller Buncher Updates To E-Series
Tigercat releases the LX830E track feller buncher with the latest features and upgrades, including a redesigned debris management system and an upgraded operator’s seat.

The LX830E is a powerful and stable leveling feller buncher with a compact tail swing and a high performance closed loop track drive system, well suited to steep slope thinning and final felling applications.

The updated E-series cab includes a new parallel action air ride seat with integrated heating and cooling. The reclining seat is fully adjustable with seat angle and seat extension adjustment. The wider seat cushion and lumbar support provide operator comfort all day long.

The HVAC controls feature a new infinitely variable fan speed control, adjusted on the control panel or the machine control system touchscreen, adding to operator comfort. Multiple convenient storage locations with nets have been added to the cab to keep items secure.

A redesigned engine enclosure provides improved roof access for clearing debris. A boom slider also reduces debris build-up in hard-to-reach areas.

A hot shutdown feature has been added. This allows the turbo to sufficiently cool before stopping the engine, improving turbo life. A larger, spring-assisted pump cover allows for easier service access to the hydraulic pump area. Hydraulic enhancements include quicker anti-stall response, consistent anti-cavitation flow and improved heat rejection.

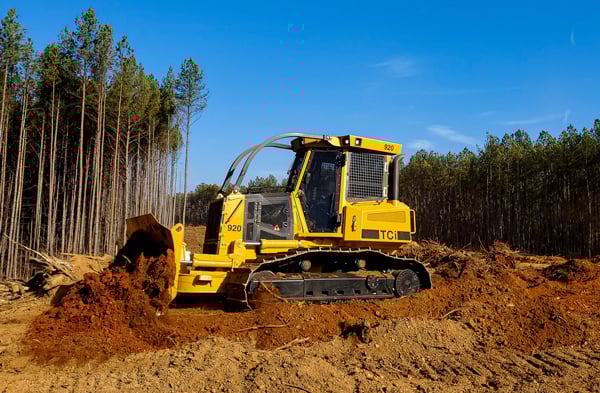

Tigercat Introduces The TCi 920 Forestry Dozer
Tigercat Industries develops purpose-built forestry dozer and launches new brand.

Tigercat Industries has developed a forestry dozer. The new TCi 920 will be making the rounds at several US forestry industry tradeshows this spring.

The dozer will be branded under the new TCi badge, as Tigercat Industries continues to design machines for applications beyond forest harvesting systems. All products falling under the TCi brand are, and will continue to be designed, manufactured, and supported by Tigercat Industries.

Seeking to overcome shortcomings that harvesting professionals have experienced when applying standard-build, mass production dozers to forestry operations, the new 920 is designed specifically for use in logging applications.

The 920 is powered by the Tigercat FTP N45 Tier 4f engine rated at 101 kw (135 hp). It is equipped with a 190 mm (7.5 in) pitch heavy duty undercarriage, a responsive and efficient closed loop track drive system, strong, impact-resistant belly pans, and durable structural components throughout. The 920 provides the power, durability and versatility for deck clearing, road building and clean-up activities on logging sites.

The carefully designed forestry cab offers the operator clear sightlines augmented by the sloped front hood and rear-mounted exhaust. The cab is quiet and comfortable with a heated and cooled air ride seat, ergonomic armrest mounted joysticks, and a large touchscreen machine control system interface.

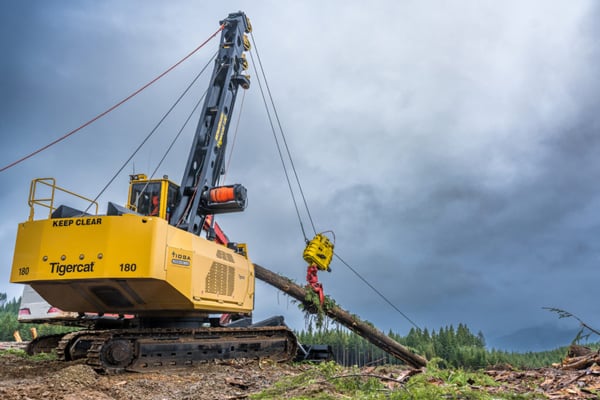

Tigercat Enters Yarding Niche With 180 Swing Yarder
The new Tigercat 180 swing yarder is purpose-built from the ground up. It combines the speed and stability of conventional yarders with the mobility and simpler controls of excavator-based yarders.

The result is a powerful and versatile yarding machine for extreme terrain logging applications. The 305 kW (409 hp) carrier was carefully designed with a component layout, hydraulic system, drivetrain, and boom system optimized for yarding. The result is high line pull, excellent stability, and efficient operation.

Designed to achieve exceptional stability, The 180 can achieve high line pull without the use of guylines in most operating conditions. The purpose-built undercarriage has a reinforced pedestal and carbody with an extended blade for added stability. The blade mounts are tied directly into the carbody for added strength. The machine can be quickly moved to the next set-up by simply lifting the blade. In operating situations where additional stability is required such as with extremely long yarding distances or low deflection conditions, a simple static guyline can be quickly set up. The machine still retains the ability to swing with this guyline attached.

The purpose-built winches are driven with efficient dedicated closed loop hydraulic circuits for smooth operations and infinitely variable speed control. The closed loop circuits provide energy when lowering the load for increased efficiency. Intuitive joystick controls, along with many programmable features reduce operator training time and increase production.

Source: Tigercat
