Excavator Configurations for Demolition Work: What to Look For Beyond Weight Class

Mar 13, 2026 - 3 months ago

When buyers search for a demolition excavator, weight class is usually the first filter they apply. It makes sense, since machine size determines reach, breakout force, and transport logistics. But weight class alone won't tell you whether a machine is actually built for demolition. Two 30-tonne excavators can perform very differently on a demo site depending on how they're configured.

Here's what to look at beyond the spec sheet weight.

Boom Configuration: Standard vs. High-Reach vs. Demolition Boom

The most impactful configuration decision for demolition is the boom type.

Standard booms are fine for ground-level and basement work — rubble processing, trench digging, loading trucks. But they weren't designed to reach up and pull structures apart.

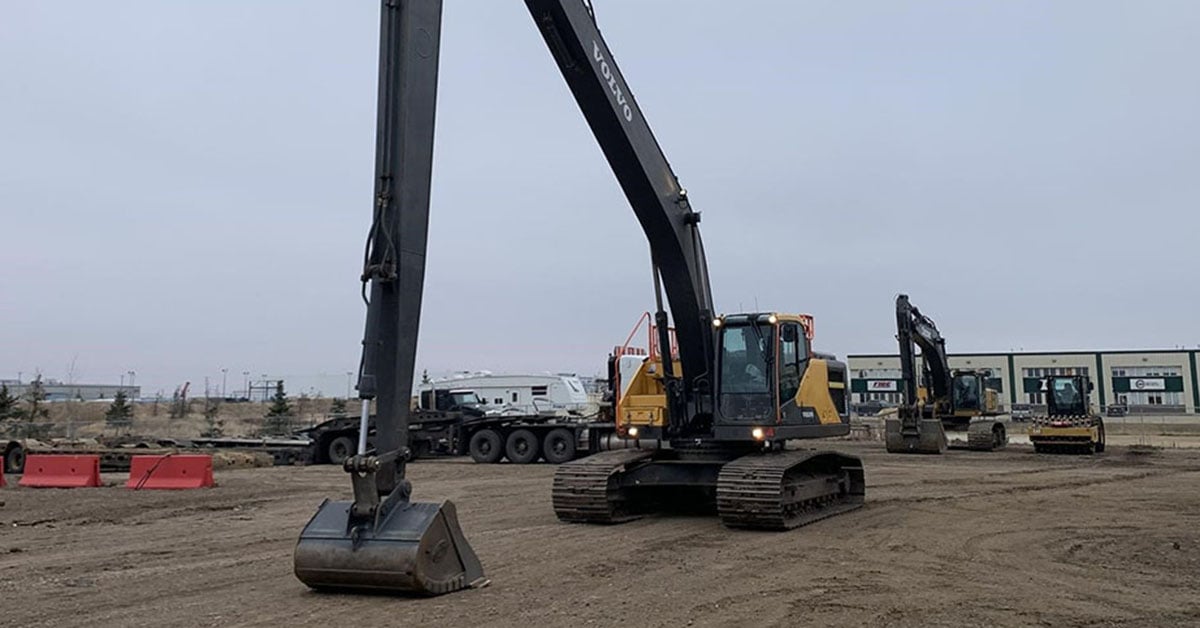

High-reach (or long-reach) booms extend vertical working height, sometimes to 20–30+ metres. They're purpose-built for top-down demolition of multi-storey concrete and steel structures. The tradeoff is reduced crowd force and lateral stability at height, so they work best with attachments like hydraulic shears or pulverizers that cut and crush rather than pry.
Demolition-specific booms, sometimes called "D-booms", are built with reinforced pivot points, heavier plate steel, and protective shrouding. They're designed to absorb the shock loading that comes from repeated hammer strikes and shear cuts.

If you're buying used, check boom wear at pin bores, cracks near weld seams at the knuckle, and whether any protective plating has been removed or improvised.

Counterweight Options

Demolition work shifts the load envelope constantly. Attachments like hydraulic shears, pulverizers, and concrete processors are significantly heavier than a standard bucket, often 2,000–5,000 kg more.

Many excavators used in demolition carry auxiliary counterweights or have provisions for them. This matters because:

Heavier attachments without an added counterweight reduce lift capacity and stability.
Tipping risk increases when working on elevated platforms or near excavated slopes.
Some machines have removable counterweight kits that allow quick adjustment between demo and earthwork configurations.

When evaluating a machine, confirm whether counterweight provisions are included, and check if the hydraulic system is rated for the attachment weights you plan to run.

Excavator Configurations for Demolition Work: What to Look For Beyond Weight Class

Hydraulic Flow and Pressure: Not All Systems Are Equal

Most excavators in the 20–50 tonne range can run hydraulic attachments. But not all of them can run demanding demolition attachments efficiently. Some machines come factory-equipped for demolition attachments, while others are retrofit-ready.

Key specs to check:

Auxiliary hydraulic flow (L/min): Higher-flow systems run shears and processors more effectively. Look for dual-circuit or high-flow auxiliary setups if you're running multiple tool types.
Operating pressure (bar/psi): Hydraulic breakers and shears have minimum pressure requirements. Mismatch here leads to poor performance and premature attachment wear.
Two-way vs. one-way auxiliary: Bidirectional flow is required for rotating attachments and many grapples. One-way systems are more limited.

Cab Protection: FOPS and OPG Ratings

On any demolition site, falling objects are a constant hazard. Standard excavator cabs are not rated for this environment.

Look for:

FOPS Level II (Falling Object Protective Structure): Required for work under or near structures being demolished. Level I covers general falling objects; Level II covers higher-impact scenarios like structural collapse.
OPG (Object Protection Guard): Front window guard that protects against debris, broken concrete, and flying material from hammering or shearing.
Cab pressurization or dust filtration: Concrete dust and silica are serious health hazards. Pressurized cabs with filtered HVAC are standard on machines specified for demolition in Canada.

Used machines may have aftermarket guards installed. Inspect the mounting quality and whether they obstruct visibility or operator egress.

Undercarriage: Width, Track Type, and Condition

Demolition sites are hard on undercarriages — broken concrete, rebar, and mixed rubble create constant wear.

Things to check:

Wide-gauge undercarriages improve stability when running heavy attachments or working on slopes.
Steel pads vs. rubber pads: Steel is the right choice for rubble-heavy surfaces; rubber pads get torn apart quickly in demolition conditions.
Track guards and roller guards: These protect components from debris packing and chain damage. Factory-spec demolition machines usually have them standard.
Undercarriage wear: On any used machine, measure sprocket, roller, and track wear carefully. Demolition cycles are hard on these components, and replacement costs are significant.

Quick Coupler and Attachment Compatibility

Demolition requires tool changes, sometimes several times per day, so a reliable quick coupler setup is not optional.

Check:

Whether the coupler is hydraulic or mechanical (hydraulic is strongly preferred for demo work).
Whether it's compatible with the attachment inventory you're planning to run.
That safety lock systems are functional, since attachment separation during operation is a serious and potentially fatal hazard.
Attachment compatibility pins and hydraulic connection type (flat-face couplers are the industry standard for contamination control).

Also, confirm the machine's hydraulic flow matches attachment specs before you buy, especially for shears and processors, which are often rated for specific flow ranges.

Key Takeaways for Canadian Buyers

When sourcing a demolition excavator in Canada, keep these points in mind:

Weight class is a starting point, not the answer. A purpose-configured 25-tonne demolition machine will outperform a 35-tonne general excavator on a demo site.
Inspect boom condition closely on used equipment. It's the hardest-worked component and the most expensive to repair.
Factor in cold-weather performance. Canadian winters demand cold-start-capable hydraulic systems and cab heaters — verify these are operational, especially on older machines.
Attachment packages add real value. A machine sold with a matched shear, hammer, or processor is often a better buy than a bare machine, especially if you're building out a demolition fleet.

Whether you're buying new or used, matching the machine's configuration to your actual work type will always outperform chasing horsepower numbers.
