New Compactor From Rototilt


Sep 4, 2018 - 3 months ago

By Supply Post

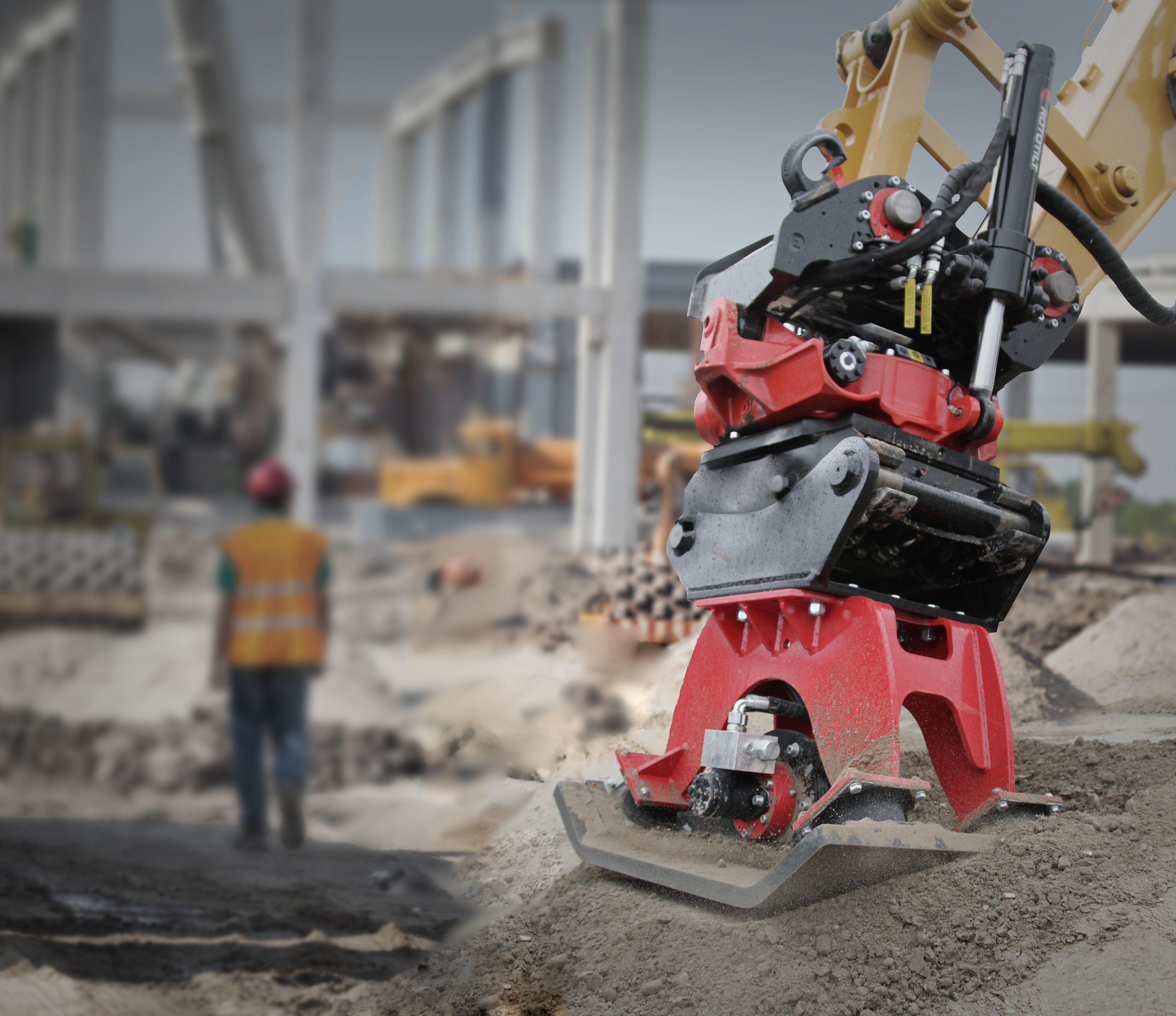

New Compactor From Rototilt

Rototilt is broadening its Compactor product line and launching a new model C34 for excavators with machine weights between 6–12 tonnes.

The C34 compactor has a vibration force of 3400 kilograms and can handle high back-pressures on the return line, a characteristic that makes it suitable for use with Rototilt's R2 and R3 tiltrotators. Rototilt now offers 4 Compactor models covering excavators from 3 to 30-tonne capacity.

“Machine-mounted compactors have many benefits,” says Sven-Roger Ekström, product manager at Rototilt. “One is that they facilitate compacting in hard-to-reach places such as pipe trenches, slopes and embankments. Another benefit is that they increase safety because people no longer need to be in potentially hazardous work areas.”

Rototilt's tiltrotator system has it all – from control systems and tiltrotators to tools and accessories. This ensures full functionality in all operations.

TECHNICAL DATA: C34 compactor

Length: 31 in / 795 mm

Width: 21 in/ 525 mm

Height: 24 in / 600 mm

Vibration force: 7,496 lb / 3.4 tonnes

Min. hydraulic flow: 7.9 gpm / 30 l/min

Max. hydraulic flow: 66 gpm / 250 l/min

Max. pressure: 250 bar
Min. machine weight: 6 tonnes / 13,230 lb
Max. machine weight: 12 tonnes / 26,450 lb

Quick Coupler options: S40, S45, S50 b

For additional information, please contact:

Gerry Mallory, General Manager Rototilt Inc. Tel: (519) 754-2195
E-mail: [email protected]
