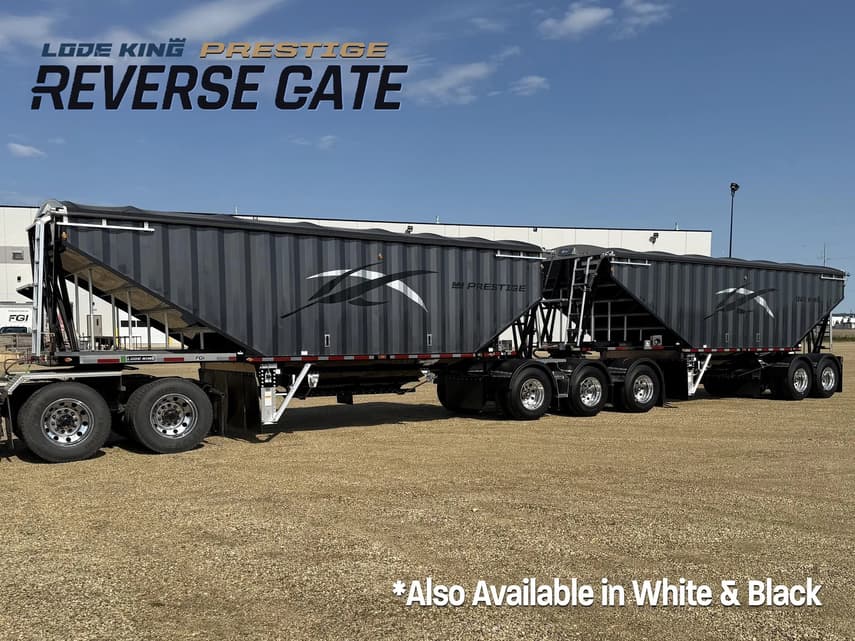

2027 Lode King Prestige Super B For Sale

2027 LODE KING PRESTIGE REVERSE GATE STEEL SUPER B - Available in black or white

LEAD - HGR28-3L, Steel Hopper Reverse Gate
LENGTH- 28’6”
KING PIN- 24” Setting
FIFTH WHEEL- Holland FW35Y700XL00 stationary, bolt-on (base model HGR Lead)
SUSPENSION- 61” Spread
ABS- 4S2M Wabco (3 Axle B-Lead)-Drum Brake
DRUM- 10 Stud Centrifuse Drum
SLOPE SHEETS- Alum-Black Exterior (HGF)
TARP- 8.5 x 28’; electric tarp system c/w crank & crank handle brackets for lead, wireless T220 remote and trailer-mounted controls
FRONT FENDERS- Std LK full coverage flat aluminum
REAR FENDERS- Add anti-slip material to half round fenders on centre axle of Lead trailer
DECAL- Full silver
LIGHTS- HGR Lead – Option B Extra Lights LK-INST-0199

PULL - HGR30-2P, Steel Hopper Reverse Gate
LENGTH- 30’
KING PIN- 15” Setting
SUSPENSION- 49” Spread
ABS- 2S1M Wabco Tandem-Drum Brake
DRUM- 10 Stud Cast Drum
SLOPE SHEETS- Alum-Black Exterior (HGR)
TARP- 8.5 x 30’; electric tarp system c/w crank & crank handle brackets for pull and trailer-mounted controls (remote included with lead trailer)
FRONT FENDERS- Std-none, used in conjunction with full fenders at rear of lead
LIGHTS- HGR Pup – Option B Extra Lights LK-INST-0327
MISC OPTIONS- Tow hooks at rear (pair); aluminum smooth fill plates in bumper with Lode King logo

LEAD & PULL
WIDTH- 102”
DRAWING- 95AA0318
COUPLER PLATE- ¼”
S.W. HEIGHT- 82”
LANDING GEAR- Jost AX151.G3.17.733 Aluminum Landing Gear, galvanized insert – 10 Year Warranty
SUSPENSION- Intraax AANT23K-14” LDA, Tridem, P-Spindle; Hendrickson Tiremaax Pro inflation system with tire inflation gauge for undressed Intraax tridem, set for constant pressure. Air gauge in box with window and light; Parker B-33 air outlet chuck and loose mating male connector (taped inside air gauge box)
AXLES- Intraax .31” wall, 5.75” round, HP Spindle, 77.5” track
BRAKE POTS- Haldex 30/30 Gold Seal, PRODUCTION
SLACKS- Haldex S-ABA slack 5.5”, 28 Spline
CAMS- 28 Spline with cam enclosures
BRAKE LINING- HXS-H23 Extended Service
SEALS- Semi fluid grease filled wheel end package, P-Spindle; vented axle, National seal, ventless hubcap, Precision nut, 24-month LK Warranty
HUB- 10 Stud HP Dura-Light / Long Stud / P-Style Spindle
WHEELS- 8.25 x 24.5 Clean Buff; wheel guard (pair) to drum face
TIRES- Hwy Control T – 11R24.5 BF Goodrich, G-12
TARP- Michel’s Select tarp c/w flip stops, reinforced over crossbows, 90-degree formed end caps, fiberglass ridge pole, dipped roof bows #8001 Black
MUD FLAPS- 4 in a row across front, black rubber-HGR; ½” black rubber LK-FGI mudflap; brake pot belting 48.5” x 24” black rubber
REAR FENDERS- NF10166SSNR no-rib stainless steel fenders with closure plates and LK stainless mounting system. Restricted clearance; damage due to contact not warrantable
PAINT / HOPPER CODE- Axalta Imron Elite Black #N0001EX
DECAL- Prestige Lode-King (non-std two-colour decal package)
LIGHTS- LED interior & exterior loading lights with switch in air control box; exterior unloading lights mounted at landing gear and behind 3-in-a-row flaps
CATWALKS & LADDERS- Front & rear
VENTS- 2 vents (located in tarp hoods)
CONSPICUITY TAPE- (ES-GEN-006) Included
MISC OPTIONS- Chute opening from both sides, each; aluminum air tanks – Tridem... See More
