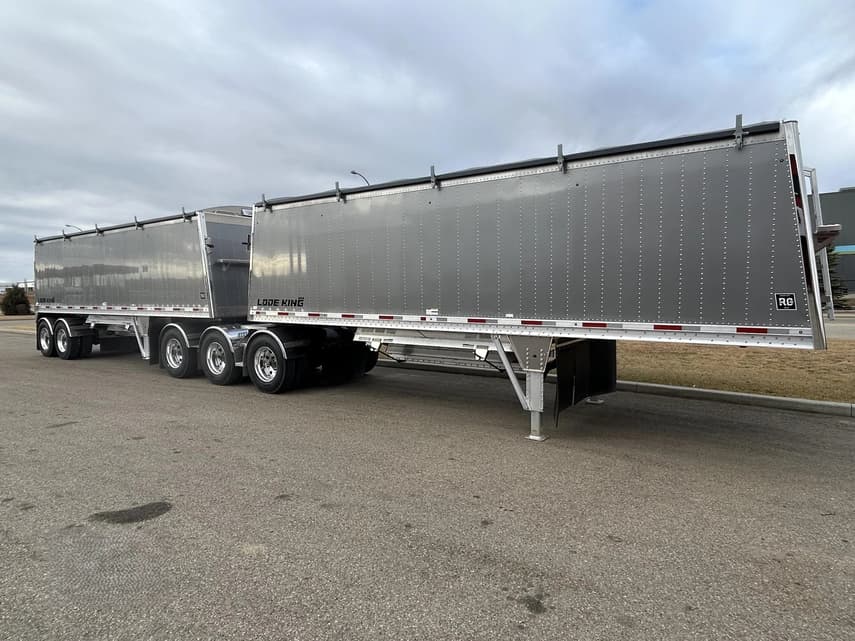

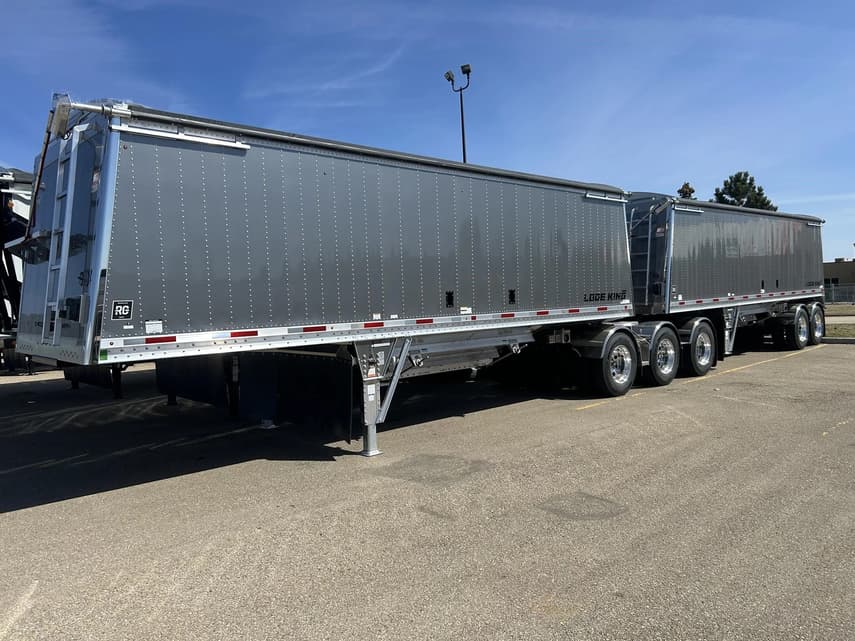

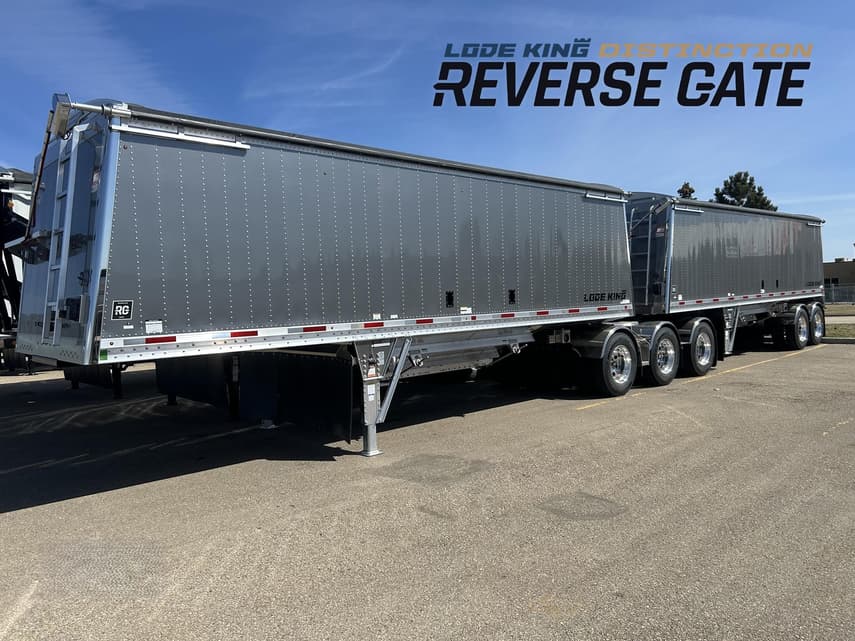

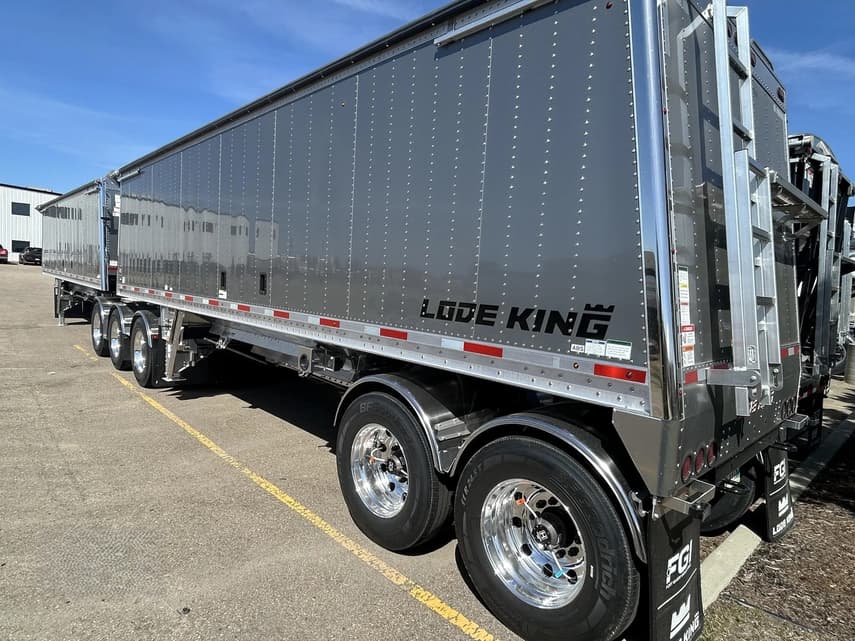

2027 LODE KING DISTINCTION SUPER B

ARRIVING AT FGI RED DEER IN LATE OCTOBER

LEAD - AHV- AHR28-3L, Alum Hopper Reverse Gate, B-Lead
LENGTH- 28’ 6”
WIDTH- 102”
KING PIN- 30” Setting
COUPLER PLATE- ¼” at 49” Coupler Plate
5TH WHEEL- Holland FW35Y700XL00 Stationary, Bolt-on (base model AHR Lead)
ABS- 4S2M Wabco (3 axle B-Lead)-Drum Brake
REAR FENDERS- NF10166SSNR No-Rib stainless steel fenders with closure plates, diamond grate steps and platform, LK Stainless mounting system. Restricted clearance, damage caused due to contact will not be warrantable. Add anti-slip material to half round fenders on centre axle of Lead Trailer, Close-out sheets under slopes at rear
LIGHTS- AHR PUP-Option B Extra Lights Model 33 LK-INST-0305 - 4” light w/anti-theft chrome ring

PULL - AHV- AHR30-2P, Alum Hopper, B-Pull
LENGTH- 30’, 5”
WIDTH- 102”
KING PIN- 18” Setting
COUPLER PLATE- ¼”
ABS- 2S1M Wabco Tandem-Drum Brake
REAR FENDERS- NF10166SSNR No-rib stainless steel fenders with closure plates and LK Stainless Mounting system. Restricted clearance, damage caused due to contact will not be warrantable. Close-out sheets under slopes at rear
LIGHTS- AHR Lead- Option B Extra Lights Model 33 LK-INST-0232
LED Interior & Exterior loading lights, with switch in air control box, exterior unloading lights mounted at landing gear and on rear stiffener of front hopper

LEAD & PULL
DRAWING- 95AA0314
S.W. HEIGHT- 84” Graphite Metallic Exterior
AHR Lead Graphite Metallic Sidewall, 4 AHR Stainless Steel Corner Post Covers at front & rear of trailer
SLOPE SHEETS- Alum-Hoppers & Slopes with unpainted aluminum

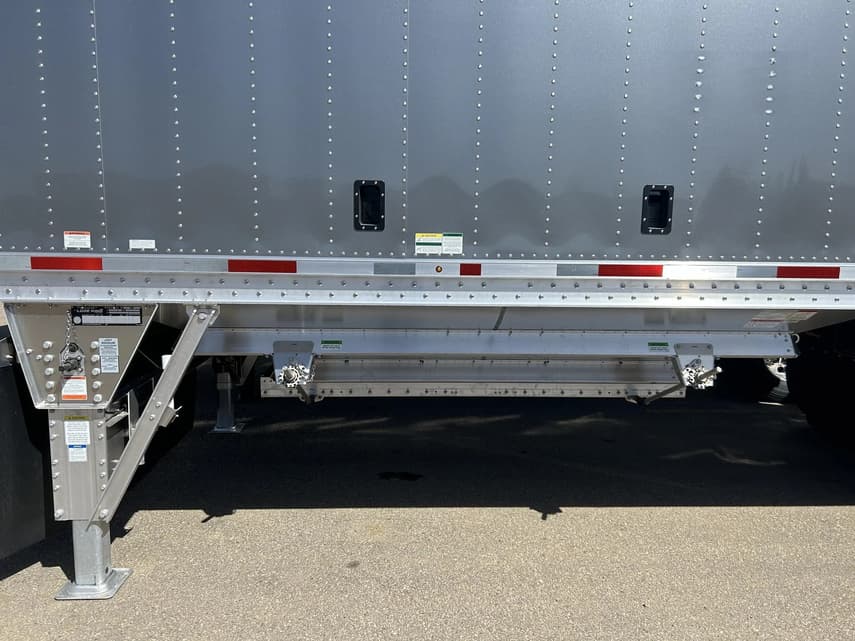

LANDING GEAR- Jost AX151.G3.17.733 Alum. Landing Gear, Galvanized insert 10-year Warranty
SUSPENSION- Intraax AANT23K-14” LDA, Tridem, P-Spindle, 61” Spread, Hendrickson Tiremaxx Pro Inflation System with tire inflation gauge, for undressed Intraax Tridem, Set for constant pressure. Air gauge mounted in a box with a window and a light-Hopper Trailers, Air outlet chuck in air gauge box Parker model B-33, Includes loose mating male. connector (tape inside air gauge box)
AXLES- Intraax .31” wall, 5.75” round, HP Spindle 77.5” track
BRAKE POTS- Haldex 30/30 Gold Seal, PRODUCTION
SLACKS- Haldex S-ABA slack 5.5”, 28 spline
CAMS- 28 Spline with cam enclosures
BRAKE LINING- HXS-H23 Extended Service
SEALS- Semi fluid grease filled wheel end package, P-Spindle, Includes vented axle, National Seal, Ventless hubcap, Precision nut, 24-month LK Warranty
HUB- 10 Stud HP Dura-Light hub / Long stud / P-Style Spindle
DRUM-10 Stud Cast Drum
WHEELS- 8.25 x 24.5 Clean Buff Wheel Guard (pair)
TIRES- Hwy Control T – 11R24.5 BF Goodrich, G-12
TARP- Michel’s select tarp, AHV Lead 28’ 6” trailer, with flip stops, reinforced over crossbows, 90 degree formed end caps, Fiberglass ridgepole, dipped roof bows Color: #8001 Black
Electric tarp system c/w crank & crank handle brackets for lead. Complete with wireless T220 remote and trailer mounted controls
MUD FLAPS- 4 in a row across front, Black rubber-AHR, Brake pot belting 48.5” x 28” Black rubber, ½” Black rubber LK / FGI Mudflap
FRONT FENDERS- Close-Out sheets under slopes at front of AHR Model
PAINT- Steel components painted Black N0001EX
DECAL- Lode-King
4” light w/anti-theft chrome ring, LED Interior & Exterior loading lights, with switch in air control box, exterior unloading lights mounted at landing gear and on rear stiffener of front hopper
CATWALKS & LADDERS- Front & Rear
VENTS- 2 Vents (Located in tarp hoods)
CONSICUITY TAPE- (ES-GEN-006) per L/F Trailer
MISC OPTIONS- Chute opening from both sides, each Tow hook at rear (pr)
AHR 2-Hopper Sight Glass RS pair, bottom of wall... See More
